5W a25 - British Standard
  • 5W a25 - British Standard
  • 5W a25 - British Standard
  • 5W a25 - British Standard
  • 5W a25 - British Standard

5W a25 - British Standard

  • Product overview


1. Product features:

(1) Shell material: PC / ABS + PC, high temperature resistance 120 ℃, fire rating: UL 94V-0;

(2) Constant voltage working mode: ± 5%;

(3) Brand IC scheme design, stable and reliable performance and low loss;

(4)Environmental protection complies with ROHS 2.0;

2、 Electrical characteristics:

(1) Input voltage / frequency: AC 100 ~ 240V (90 ~ 264v), 50 / 60Hz (47 / 63Hz)

(2) Output power: Max 12W

(3)Output voltage: DC 3V ~ 12V

(4) Output current: 0.1A ~ 2A

(5) Load adjustment range: ± 5%

(6) Energy efficiency: meet class v

(7) Withstand voltage test: AC 3000V / min 5mA / 3S

(7) Insulation impedance: DC 500V 100m Ω

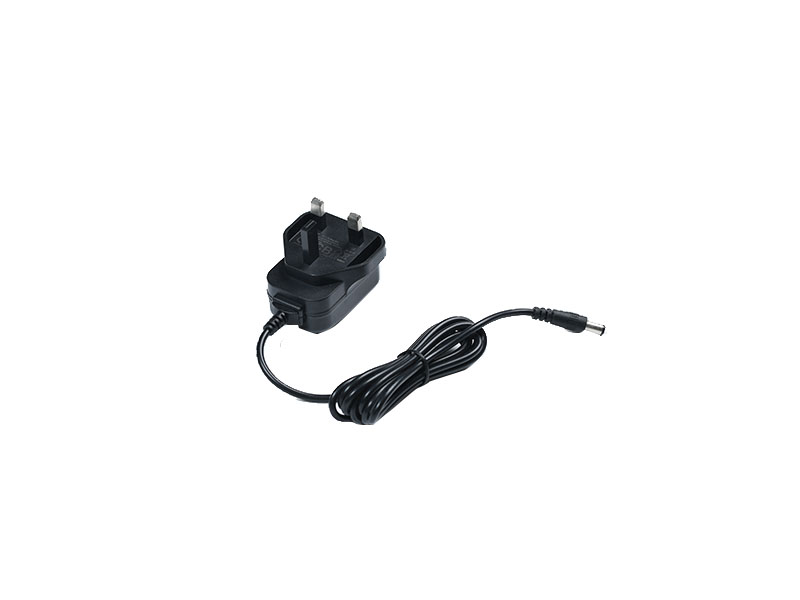

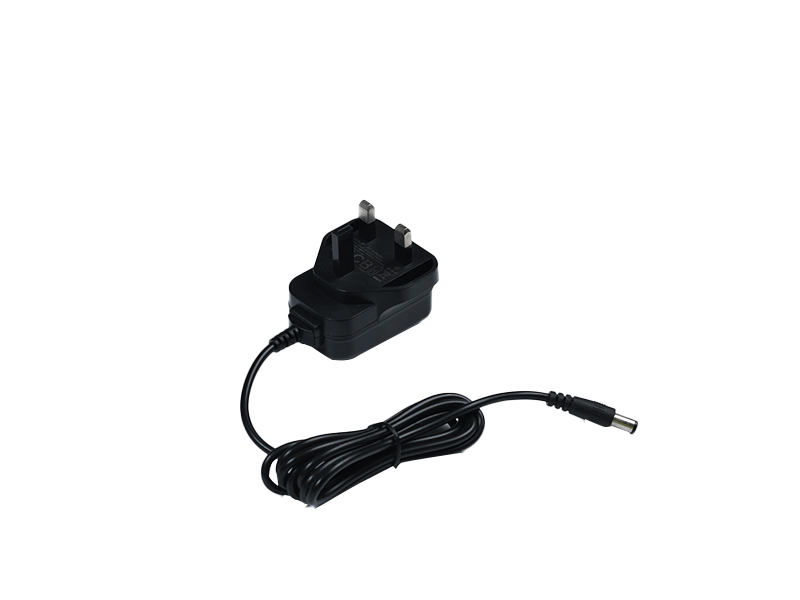

A25 - British power adapter

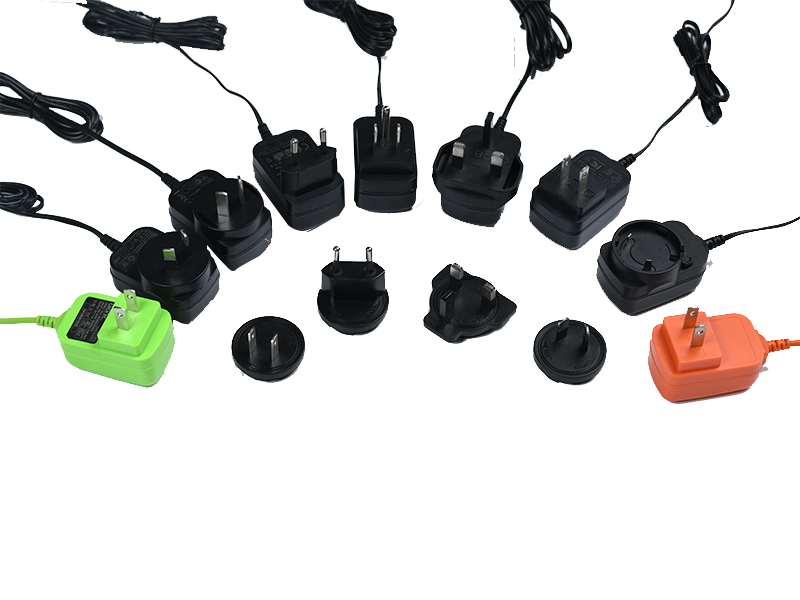

A25 - replaceable power adapter

The power adapter

The power adapter

3. Protection function:

(1) Overcurrent protection: 120%

(2) Overvoltage protection: 120%

(3)Short circuit protection: automatic recovery

4. Reliability test:

(1) Aging test: the product shall be aged for at least 2 hours under the environment of 40 ℃± 5 ℃ and 100% rated load;

(2)MTBF estimation: at least 50000 hours, under 25 ℃ environment and input and full load conditions;

(3)Drop test: 1m high, drop onto the hardwood with thickness of 30mm, and the hardwood shall be placed on the cement base or equivalent inelastic ground;

5. Environmental requirements:

(1) Working temperature: 0 ~ 40 ℃

(2) Storage temperature: - 20 ~ 85 ℃

(3) Working humidity: 5 ~ 95% RH

6. Safety certification:

Japanese PSE, American UL, Chinese CCC, Australian SAA, European CE, CB, GS
